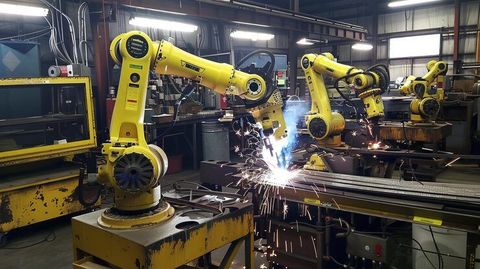

Welding robots are automated robotic systems designed to perform welding operations with a high level of consistency and repeatability. They combine an industrial robotic arm with welding equipment, sensors, controllers, fixtures, and specialized software to complete welding tasks with limited direct manual intervention.
Robotic welding is widely associated with manufacturing environments where the same or similar welding operations need to be performed repeatedly. Industries such as automotive manufacturing, metal fabrication, construction equipment, machinery production, and industrial manufacturing use robotic welding systems for different applications.
Unlike traditional manual welding, where an operator physically controls the welding torch, a robotic system follows programmed movement paths and welding parameters. This allows manufacturers to maintain consistent torch positioning, travel speed, and weld sequences across repeated production cycles.
How Does Robotic Welding Work?
A robotic welding system begins with a programmed welding path. The robotic arm moves the welding torch through specific positions while the welding equipment controls the welding process.
The robot controller coordinates movement between the different joints of the robotic arm. At the same time, the welding power source controls important parameters such as current, voltage, wire feeding, and shielding gas, depending on the welding method.
A typical cycle begins when a workpiece is positioned in a fixture. The robot moves toward the designated welding area, approaches the joint, establishes the welding process, follows the programmed path, and completes the weld. Once the welding sequence is finished, the robot returns to its programmed position or moves to the next operation.
More advanced systems can incorporate sensors and vision technologies. These technologies can help the robot identify workpiece positions, detect variations, or adjust the welding path when conditions differ from the original programmed setup.
Main Components of a Welding Robot System
A robotic welding system consists of several interconnected components rather than just a robotic arm. Each part contributes to the overall operation and reliability of the system.
The robotic arm provides controlled movement of the welding torch. Industrial robots commonly have multiple axes, allowing the torch to approach joints from different directions and orientations.
The welding power source generates the electrical energy required for the welding process. Its specifications depend on the welding method and materials being joined.
The welding torch is attached to the robotic arm and delivers the welding process to the joint. Torch design can vary according to the application, joint geometry, and welding method.
The robot controller manages the programmed movements and coordinates the robot with other equipment. It is essentially the control center of the robotic cell.
The workholding fixture keeps components in a consistent position during welding. Accurate fixturing is especially important because even small changes in component position can affect weld quality.
Other components can include wire feeders, shielding gas systems, safety equipment, sensors, positioners, torch cleaning systems, and human-machine interfaces.
Common Types of Robotic Welding
Robotic welding can use several welding processes depending on the material, component design, joint configuration, and production requirements.
MIG and MAG welding are among the most widely used processes in automated welding. They use a continuously supplied wire electrode and shielding gas. Their relatively high deposition rates make them suitable for many industrial applications.
TIG welding can provide precise and controlled welds and is useful for applications where weld appearance and process control are important. However, its characteristics can make automation requirements different from those of wire-fed welding processes.
Spot welding robots are particularly common in automotive manufacturing. Instead of creating a continuous weld bead, the system creates individual weld points at specified locations.
Laser welding robots use concentrated laser energy to join materials. They can be suitable for applications requiring precise and highly controlled welding, although the system design and process requirements can be more complex.
The appropriate welding process depends on factors such as material thickness, joint design, production volume, required weld characteristics, and dimensional tolerances.
Benefits of Welding Automation
One of the main advantages of welding robots is consistency. Once a process has been properly programmed and validated, the robot can repeat the same movement sequence many times with limited variation.
Robotic welding can also improve production efficiency when components require repetitive welding operations. The robot can maintain a programmed travel speed and sequence, reducing some of the variation associated with repetitive manual operations.
Another important advantage is improved workplace ergonomics. Welding can involve awkward postures, heat, fumes, sparks, and repetitive movements. Moving certain repetitive operations into an automated welding cell can reduce the amount of direct exposure for workers, although robotic cells still require appropriate safety procedures and monitoring.
Automation can also make process data easier to monitor. Modern robotic systems may record operating information that can be used for quality control, maintenance planning, and process analysis.
However, robots do not automatically guarantee better weld quality. Proper programming, fixturing, component preparation, equipment maintenance, and process control remain essential.
Welding Robots and Weld Quality
Weld quality depends on much more than robot movement. The welding process must be correctly configured for the material and joint.
Important factors include welding current, voltage, travel speed, wire feed rate, shielding gas, torch angle, contact-tip-to-work distance, joint preparation, and material cleanliness.
The robot provides repeatable movement, but it cannot compensate for poorly prepared components or incorrectly selected welding parameters.
Sensors can improve adaptability in some applications. For example, seam tracking technology can help identify the actual position of a joint and make adjustments when workpiece positioning varies. This can be particularly useful when components are not perfectly identical from one cycle to another.
Applications of Welding Robots
Welding robots are used across many manufacturing sectors. Automotive production is one of the best-known applications because vehicle bodies and components often contain large numbers of repetitive welds.
In heavy equipment manufacturing, robotic welding can be used for frames, structural components, brackets, and other metal assemblies. Industrial machinery manufacturers may use robotic systems for equipment housings, frames, tanks, and fabricated components.
Metal fabrication facilities can also use robotic welding for repeat production runs where component geometry and welding requirements are sufficiently consistent.
The technology is not limited to large factories. Smaller robotic welding cells can be designed for specific repetitive operations when the production environment and component characteristics support automation.
Welding Robots vs. Manual Welding
Manual welding provides flexibility because an experienced welder can respond to changing component conditions and unusual geometries. It can be particularly useful for prototypes, repairs, low-volume work, and highly variable fabrication.
Robotic welding is generally more suitable for repetitive operations where components, joints, and welding sequences remain relatively consistent.
The difference is therefore not simply about replacing manual welding with automation. The more important question is whether a particular welding operation is suitable for robotic control.
A successful automated process normally requires repeatable component positioning, suitable joint accessibility, consistent material preparation, and a clearly defined welding sequence.
Safety Considerations for Robotic Welding
Robotic welding cells require carefully designed safety measures because industrial robots can move rapidly and generate significant mechanical and thermal hazards.
Safety systems may include physical guarding, interlocked access points, emergency-stop controls, safety-rated monitoring, welding screens, ventilation, and appropriate personal protective equipment.
Operators and maintenance personnel also need appropriate training. Access to a robotic cell should follow established safety procedures, particularly during programming, maintenance, troubleshooting, and equipment adjustments.
Welding fumes, ultraviolet radiation, heat, sparks, electrical hazards, and moving machinery must all be considered when designing and operating a robotic welding environment.
What Is the Future of Welding Robots?
The development of welding automation is increasingly connected with sensors, machine vision, artificial intelligence, digital monitoring, and data-driven manufacturing.
Modern systems are becoming better at detecting variations in components and adjusting welding operations. Vision systems can provide additional information about workpieces, while sensors can monitor aspects of the welding process.
Artificial intelligence and machine learning may also contribute to predictive quality monitoring and equipment maintenance. Instead of relying only on programmed sequences, future systems are likely to use more real-time process information to identify deviations and support faster adjustments.
The broader trend is toward connected robotic welding cells that communicate with manufacturing software and production monitoring systems.
Conclusion
Welding robots are an important part of modern industrial automation, particularly for repetitive and structured welding operations. Their ability to perform programmed movements consistently can improve process repeatability, production efficiency, and workplace ergonomics when the application is properly designed.
Understanding the complete robotic welding system is essential. The robotic arm is only one component; welding equipment, fixtures, controllers, sensors, safety systems, programming, and process parameters all influence the final result.
As manufacturing becomes increasingly automated and data-driven, welding robots are expected to become more adaptable and connected. For businesses and professionals exploring welding automation, the most important starting point is to understand the welding process, production requirements, component characteristics, and safety considerations before determining whether robotic welding is appropriate.
